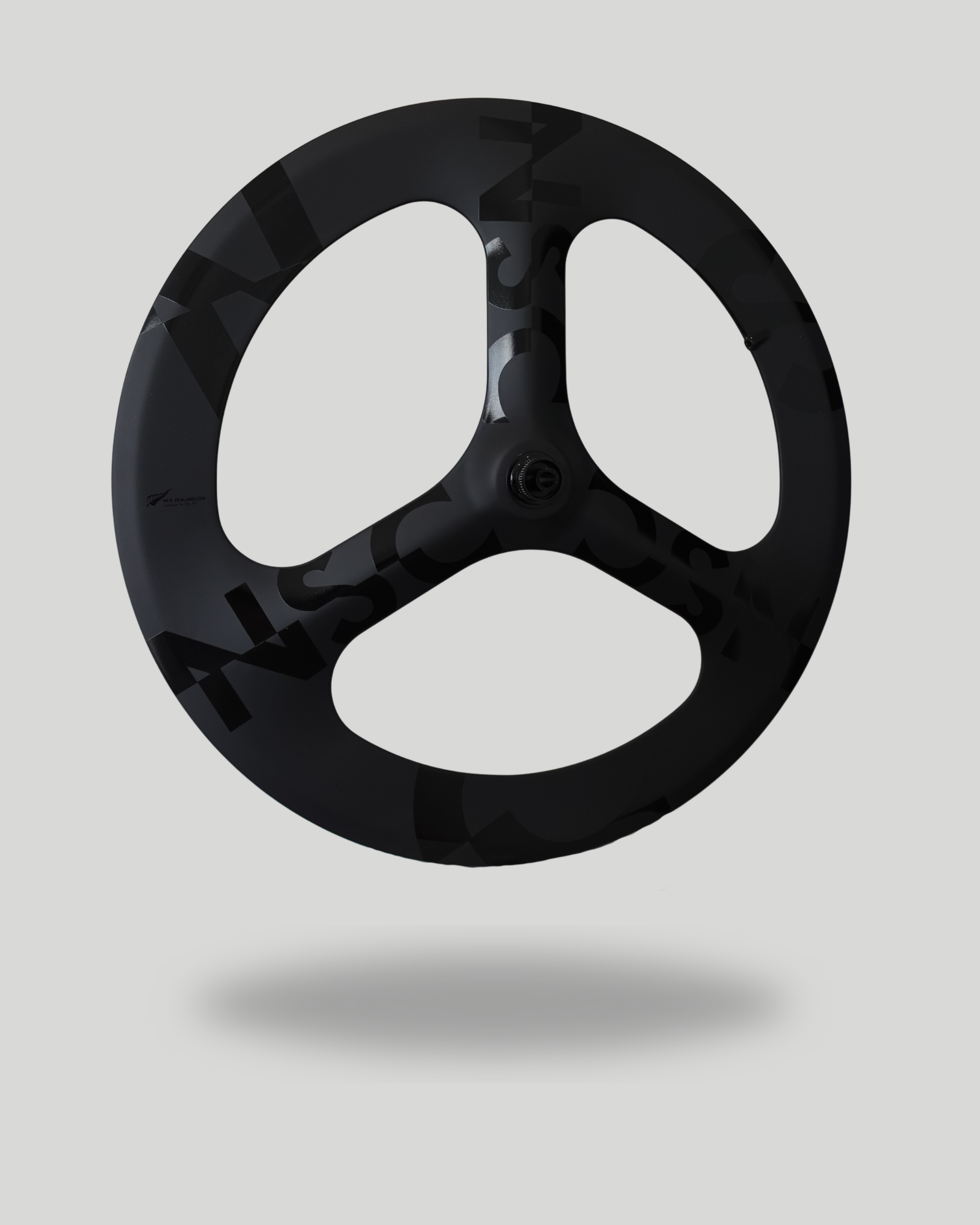

    NS TRI SPOKE

    Regular price $1,550.00
    Tax included. Shipping calculated at checkout.
    BRAKING:

    THE LEADING LINE

    The NS Tri-Spoke has a brand new look for 2024. Designed by Team NS Rider, Ani Gemmill.

    For the long distance athlete or time trial specialist, for the ones pursuing the fastest version of themselves. And for the ones that like to choose carefully, challenging status quo.

    Let us introduce you to our NS Tri-spoke - NS Disc's best race companion. Exchanging traditional spokes for carbon on the front significantly ups aerodynamic benefits while also shedding weight. The three carbon fibre blade-like spokes with a smaller frontal area help better dissipate air to reduce overall drag, while the 70mm deep rim still maintains front end manoeuvrability. An extremely rigid ride like this gives more control at speed too - making acceleration easier and steering more precise.

    This is a serious aero setup, often selected for the ultimate time-trial or long course triathlon setups - plus the cool factor that comes with running a Tri-spoke wheel on your bike!

    WHY?

    // Magnified aerodynamic efficiency, free speed for the du/triathletes and road racers
    // Novatec internals provide lightweight reliability
    // Ability to hold top speed longer



      THIS WHEEL

      WEIGHT Front 855g | Wheel only / no cassette, tyre, tube or rotor
      TYRE SYSTEM Tyres and tube (clincher) only
      TYRE COMPATIBILITY Recommended tyre widths: 23mm - 28mm

      OVERALL DIMENSION

      700C ⌀632mm
      WIDTH 17mm internal / 24mm external rim width
      DEPTH 70mm rim depth
      RIM Carbon Fibre Toray T700, V-shape
      HUBS

      Novatec Centerlock for Disc Brake 171g
      [12x100mm Through Axle (standard)]

      Novatec V-Brake for Rim Brake 60g
      [9x100mm Quick Release (standard)]

      2 Sealed (steel) Bearings

      See compatibility guide

      TAPE Yes - Rim bead protection
      FINISH UD - Black matte | Coated decals (NOT STICKERS / NOT REMOVABLE) White
      BRAKING SYSTEM

      Disc brake | Centrelock

      Rim Brake | V-Brake

      Valve extenders required - How to install valve extenders

      Rim brake surface: Carbon, basalt and resin TG (190-200C) (12mm)

      ASSEMBLY Proudly hand-built by the world's greatest carbon fibre artisans in Xiamen, People's Republic of China
      MAXIMUMS

      Generally 85-100psi (Max 110 / Min 80) -check your tyre manufacturer max and low pressures

      Max rider weight 130kg

      PACKAGE

      Moved using local couriers - air and land transportation as required

      800mm x 650mm x 170mm, 2.4kg

      Included in the box:

      -Wheel

      -Rim tape installed

      -Booklet -Welcome to nscarbon, Set up and Maintenance guide

      -Quick release | Aluminium alloy 48g (Rim Brake only)

      CERTIFICATION
      FERNMARK LICENCE NO. 100715



      Want the best protection around to store & transport your wheels? Look no further - NSC Wheelcase

      Want this wheel to arrive already set up? -add the set up service here

      ///
