NS DISC
A NEW LOOK FOR 2024
The NS Disc has a brand new look for 2024. Designed by Team NS Rider, Ani Gemmill.
For the long distance athlete, for the ones pursuing the fastest yet version of themselves. And for the ones that like to choose carefully, challenging status quo.
Our NS Disc delivers ridiculous aerodynamic efficiency thanks to perfectly flat and highly slippery carbon panels. Wind silently slips through while DT Swiss internals prevent wattage waste.
Best paired with the NS Tri-Spoke on the front - if you can handle that speed.

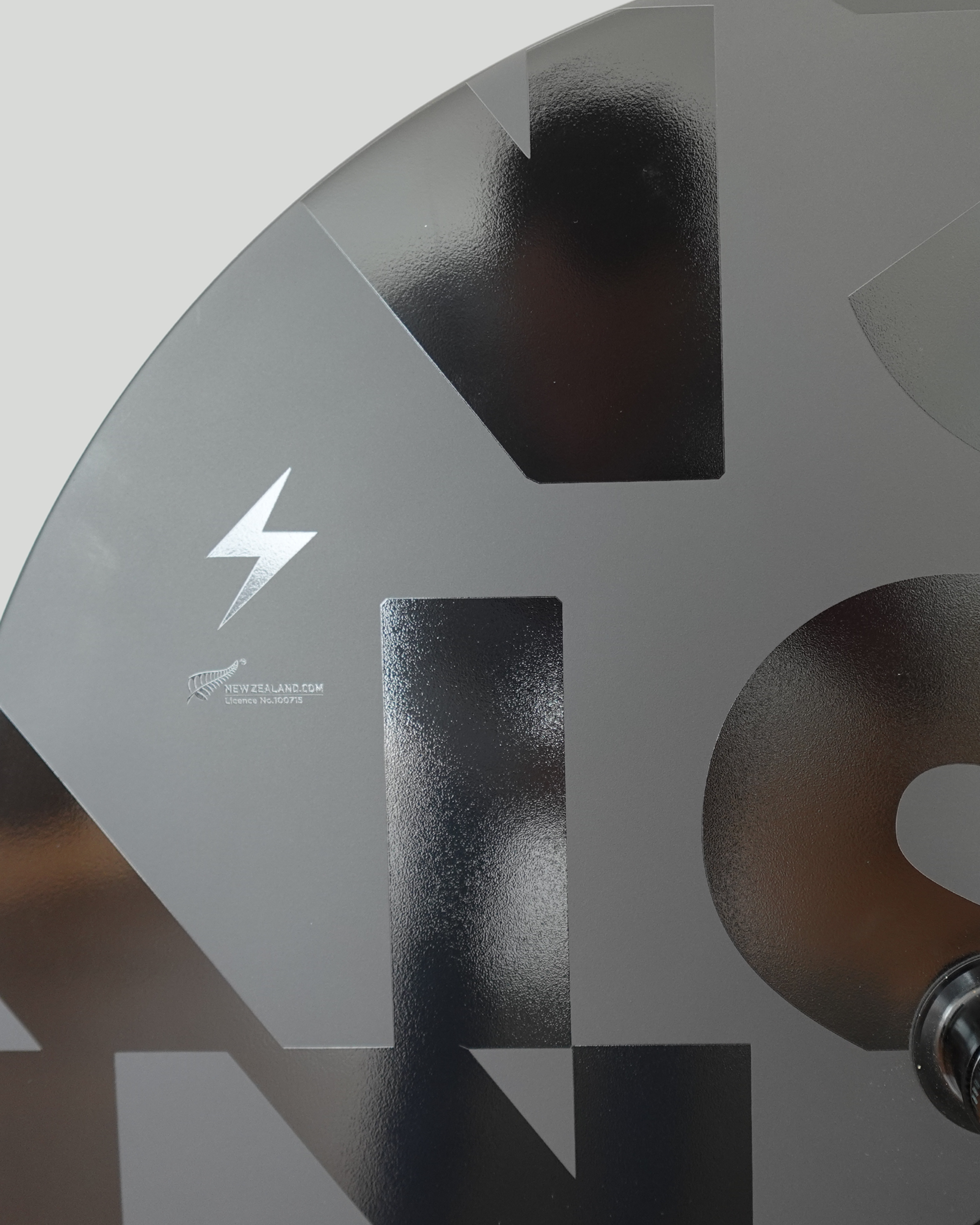

The design features the lightning bolt, a tribute to our former team rider, Emily McNaughtan. She was a force of nature on the road and a much loved member of our team. The lightning bolt embodies the spirit she bought to every ride and we hope it inspires you to push your limits on every raceday.
WHY?
// Magnified aerodynamic efficiency, free speed for the du/triathletes and road racers
// DT Swiss internals to provide the smoothest power transfer, no watts lost
// Ability to hold top speed longer
THIS WHEEL
| WEIGHT | Rear 1290g | Wheel only / no cassette, tyre, tube or rotor |
| TYRE SYSTEM | Tyre and tube (clincher) only |
| TYRE COMPATIBILITY | Recommended tyre widths: 23mm - 28mm |
|
OVERALL DIMENSION |
700C ⌀632mm |
| WIDTH |
RB - 18mm internal / 25mm external rim width DB - 18mm internal / 25mm external rim width |
| DEPTH | Solid Disc |
| RIM | Carbon Fibre Toray T700, no panels -full carbon construct |
| HUBS |
DT Swiss 350 Centerlock for Disc Brake 268g DT Swiss 350 for Rim Brake 265g Ratchet System 18 and Steel bearings |
| TAPE | Yes - Rim bead protection |
| FINISH | UD - Black matte | Coated decals (NOT STICKERS / NOT REMOVABLE) | White (product image) |
| BRAKING SYSTEM |
Disc brake | Centrelock Rim Brake | V-Brake Valve extenders not needed | Pump with right angle head or a right angle adapter is required Rim brake surface: Carbon, basalt and resin TG (190-200C) (12mm) |
| ASSEMBLY | Proudly hand-built by the world's greatest carbon fibre artisans in Xiamen, People's Republic of China |
| MAXIMUMS |
Generally 85-100psi (Max 110 / Min 80) -check your tyre manufacturer max and low pressures Max rider weight 130kg |
| PACKAGE |
Moved using local couriers - air and land transportation as required 650mm x 650mm x 170mm, 2.4kg Included in the box: -Wheel & Cassette spacer for 8/9/10 speed Shimano/SRAM -Rim tape installed -Booklet -Welcome to nscarbon, Set up and Maintenance guide -Quick release | Aluminium alloy 53g Rear (Rim Brake only) |
| CERTIFICATION | FERNMARK LICENCE NO. 100715 |
Want the best protection around to store & transport your wheels? Look no further - NSC Wheelcase
Want this wheel to arrive already set up? -add the set up service here
///
